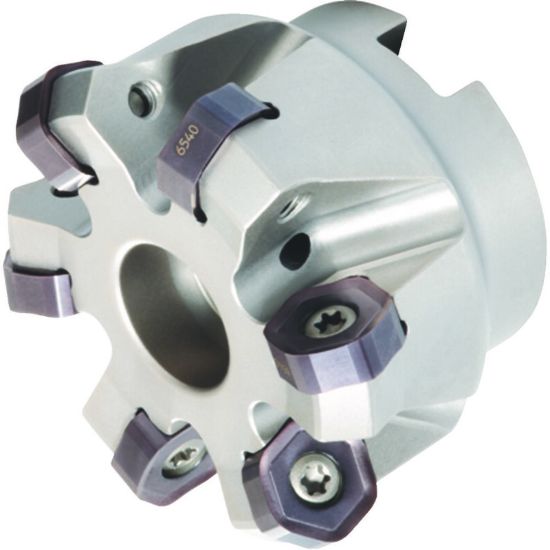

Picture of WIDIA/KENNAMETAL M1200D040Z04HN07 45.0° Milling Cutter 1.918 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M1200D040Z04HN07 45.0° Milling Cutter 1.918 Cutter Diameter Face Mill 0.866

ANSI: M1200D040Z04HN07

ISO: M1200D040Z04HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3957995
Delivery date: 3-5 days
$495.03

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Shipping State Pennsylvania
Application Face Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Cut Dia Min 1.5748 40.00MM
Depth Of Cut Max 0.1380
Cutter Dia 1.9180 48.72MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Insert Size Ic 704
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Hand R/L Right
Insert Style HN,XN
