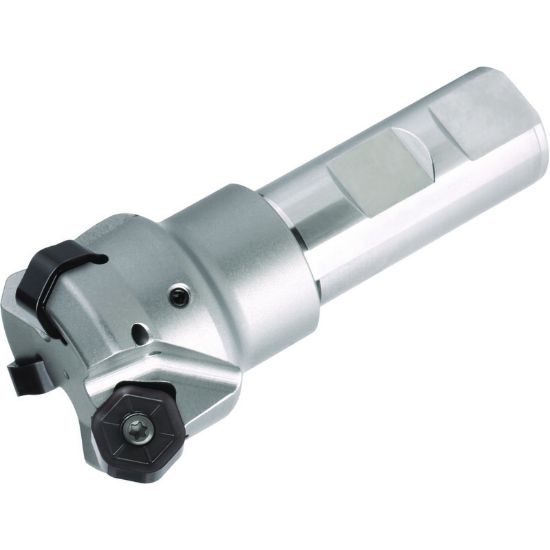

Picture of WIDIA/KENNAMETAL M1200D040Z04B25HN09 45.0° Milling Cutter 2.008 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL M1200D040Z04B25HN09 45.0° Milling Cutter 2.008 Cutter Diameter Cylindrical 0.984

ANSI: M1200D040Z04B25HN09

ISO: M1200D040Z04B25HN09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3325311
Delivery date: 3-5 days
$445.93

Features And Benefits

Twelve cutting edges. First choice for general face milling. Low cutting forces for maximum productivity.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing, Finishing
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 4.2130 107.01MM
Depth Of Cut Max 0.1770
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Cutter Dia 2.0080 51.00MM
Cut Dia Min 1.5748 40.00MM
Neck Dia 1.2560
Flutes/Inserts 4
Insert Size Ic 905
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
