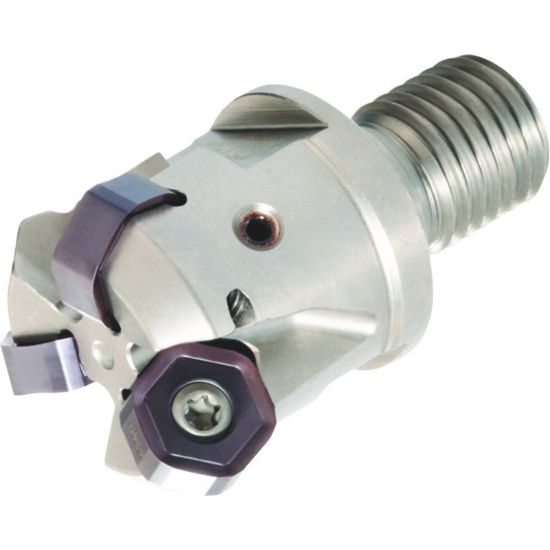

Picture of WIDIA/KENNAMETAL M1200D032Z03M16HN07 45.0° Milling Cutter 1.603 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M1200D032Z03M16HN07 45.0° Milling Cutter 1.603 Cutter Diameter Screw On M16

ANSI: M1200D032Z03M16HN07

ISO: M1200D032Z03M16HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3957841
Delivery date: 3-5 days
$415.49

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Finishing, Semi Finishing
Application Face Milling
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Depth Of Cut Max 0.1380
Tool Material Steel
Cutter Dia 1.6030 40.72MM
Cut Dia Min 1.2600 32.00MM
Overall Len 2.4800 62.99MM
Machine Side Connection Type Screw On
Flutes/Inserts 3
Insert Size Ic 704
Machine Side Connection Size M16
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Insert Style HN,XN
Hand R/L Right
