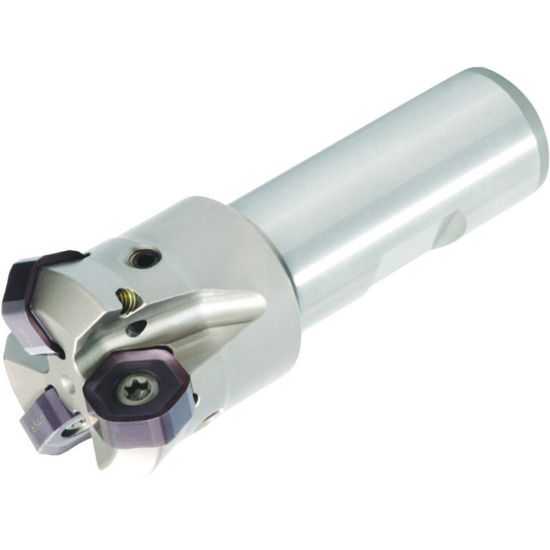

Picture of WIDIA/KENNAMETAL M1200D032Z03B25HN07 45.0° Milling Cutter 1.603 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL M1200D032Z03B25HN07 45.0° Milling Cutter 1.603 Cutter Diameter Cylindrical 0.984

ANSI: M1200D032Z03B25HN07

ISO: M1200D032Z03B25HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3958023
Delivery date: 3-5 days
$397.59

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing, Finishing
Application Face Milling
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Depth Of Cut Max 0.1380
Tool Material Steel
Cutter Dia 1.6030 40.72MM
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Cylindrical
Overall Len 3.8190 97.00MM
Neck Dia 1.2559
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Insert Size Ic 704
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
Insert Style HN,XN
Hand R/L Right
