  • WIDIA/KENNAMETAL M1200D032Z03A25HN07L130 45.0° Milling Cutter 1.603 Cutter Diameter Cylindrical 0.984

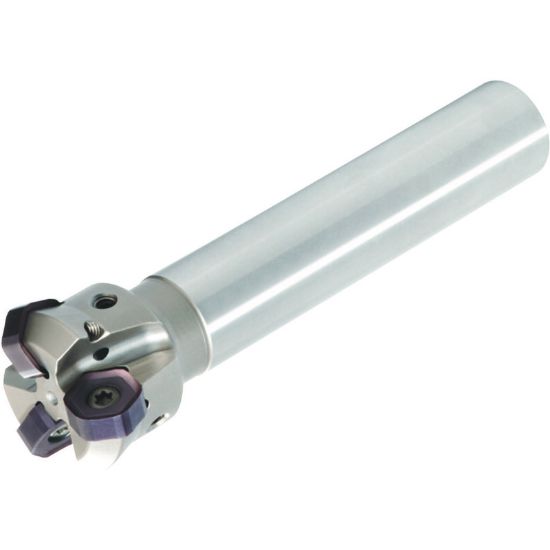

Picture of WIDIA/KENNAMETAL M1200D032Z03A25HN07L130 45.0° Milling Cutter 1.603 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL M1200D032Z03A25HN07L130 45.0° Milling Cutter 1.603 Cutter Diameter Cylindrical 0.984

ANSI: M1200D032Z03A25HN07L130

ISO: M1200D032Z03A25HN07L130

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3958027
Delivery date: 3-5 days
$415.49

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Insert Application Finishing, Semi Finishing, Roughing
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Neck Dia 0.9567
Flutes/Inserts 3
Cutter Dia 1.6030 40.72MM
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Cylindrical
Insert Size Ic 704
Overall Len 5.1180 130.00MM
Depth Of Cut Max 0.1380
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
