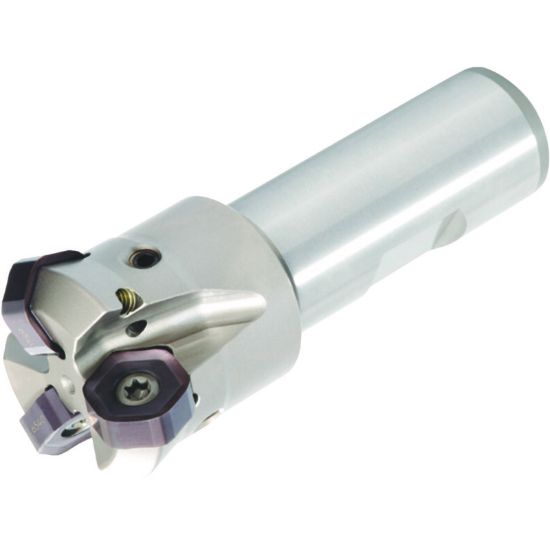

Picture of WIDIA/KENNAMETAL M1200D025Z03B20HN07 45.0° Milling Cutter 1.328 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL M1200D025Z03B20HN07 45.0° Milling Cutter 1.328 Cutter Diameter Cylindrical 0.787

ANSI: M1200D025Z03B20HN07

ISO: M1200D025Z03B20HN07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3958012
Delivery date: 3-5 days
$379.60

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing, Finishing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Application Face Milling
Package Size 1
Dimensional Specifications
Cutter Dia 1.3280 33.73MM
Flutes/Inserts 3
Machine Side Connection Size 0.7874 20.00MM
Overall Len 3.2280 81.99MM
Cut Dia Min 0.9840 24.99MM
Insert Size Ic 704
Shank/Pilot Dia 0.7874 20.00MM
Depth Of Cut Max 0.1380
Neck Dia 1.0591
Tool Material Steel
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
