  • WIDIA/KENNAMETAL M1200D025Z03A20HN07L120 45.0° Milling Cutter 1.328 Cutter Diameter Cylindrical 0.787

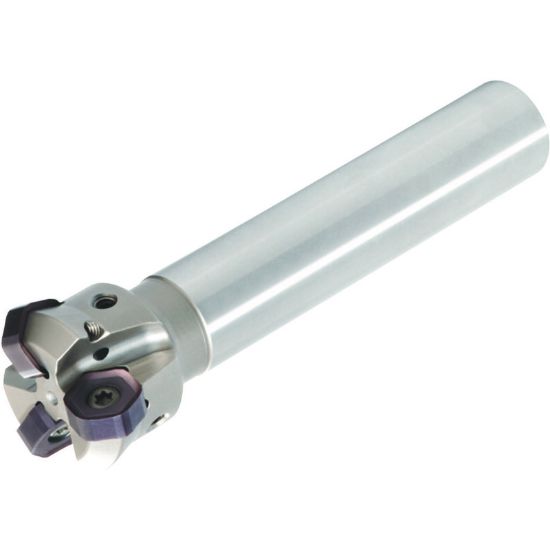

Picture of WIDIA/KENNAMETAL M1200D025Z03A20HN07L120 45.0° Milling Cutter 1.328 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL M1200D025Z03A20HN07L120 45.0° Milling Cutter 1.328 Cutter Diameter Cylindrical 0.787

ANSI: M1200D025Z03A20HN07L120

ISO: M1200D025Z03A20HN07L120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3958026
Delivery date: 3-5 days
$397.59

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Neck Dia 0.7598
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 704
Shank/Pilot Dia 0.7874 20.00MM
Machine Side Connection Type Cylindrical
Overall Len 4.7240 119.99MM
Depth Of Cut Max 0.1380
Cutter Dia 1.3280 33.73MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
