  • WIDIA/KENNAMETAL M1200D025Z02A20HN07L120 45.0° Milling Cutter 1.328 Cutter Diameter Cylindrical 0.787

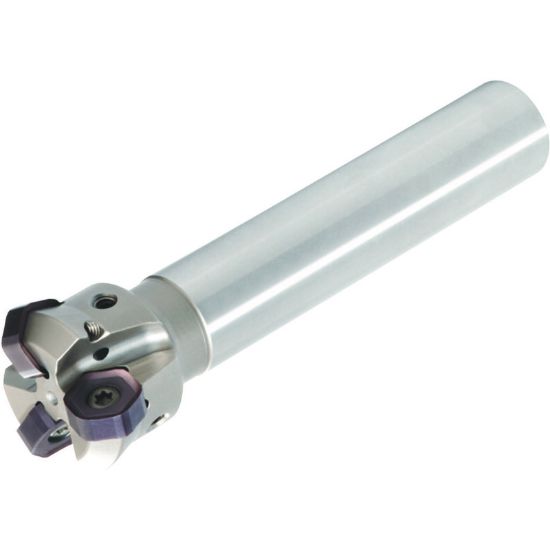

Picture of WIDIA/KENNAMETAL M1200D025Z02A20HN07L120 45.0° Milling Cutter 1.328 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL M1200D025Z02A20HN07L120 45.0° Milling Cutter 1.328 Cutter Diameter Cylindrical 0.787

ANSI: M1200D025Z02A20HN07L120

ISO: M1200D025Z02A20HN07L120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3958025
Delivery date: 3-5 days
$371.91

Features And Benefits

Twelve cutting edges. First choice for low depth-of-cut face milling. Maximum number of teeth per diameter.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing, Finishing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Application Face Milling
Dimensional Specifications
Insert Size Ic 704
Neck Dia 0.7598
Machine Side Connection Size 0.7874 20.00MM
Overall Len 4.7240 119.99MM
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Cutter Dia 1.3280 33.73MM
Depth Of Cut Max 0.1380
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Insert Style HN,XN
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Hexagon
