  • WIDIA/KENNAMETAL M100D200Z05S075RD12 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

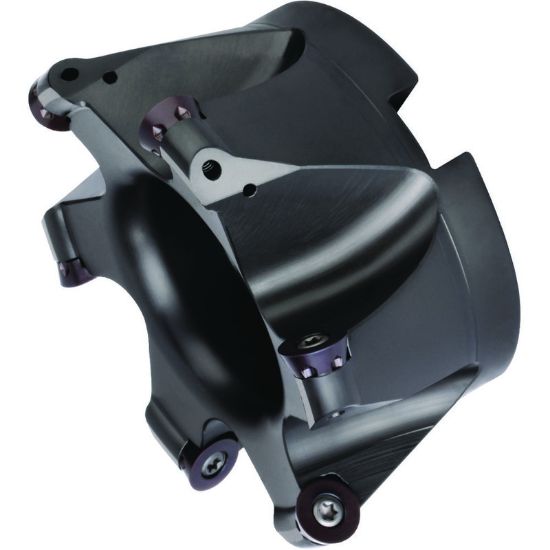

Picture of WIDIA/KENNAMETAL M100D200Z05S075RD12 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M100D200Z05S075RD12 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

ANSI: M100D200Z05S075RD12

ISO: M100D200Z05S075RD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2646725
Delivery date: 3-5 days
$431.93

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Round Milling, Ramp Milling, Face Milling
Made In USA No
Shipping State Pennsylvania
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Insert Size Ic 12
Cut Dia Min 1.5300 38.86MM
Overall Len 1.6300 41.40MM
Depth Of Cut Max 0.2362
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RD
