  • WIDIA/KENNAMETAL M100D200Z04S075RC16 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

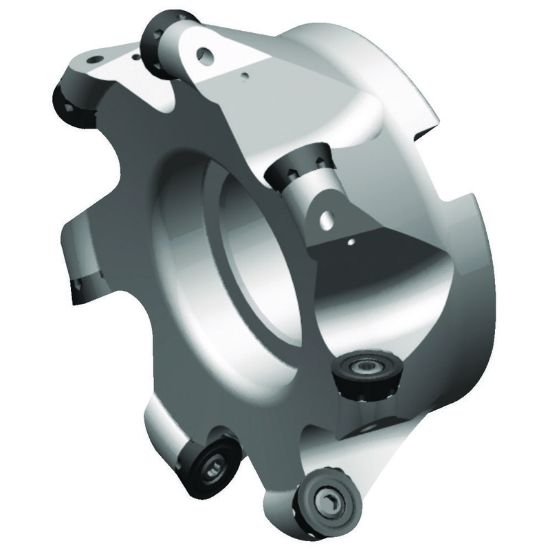

Picture of WIDIA/KENNAMETAL M100D200Z04S075RC16 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M100D200Z04S075RC16 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

ANSI: M100D200Z04S075RC16

ISO: M100D200Z04S075RC16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2646723
Delivery date: 3-5 days
$431.93

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Round Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Min 1.3700 34.80MM
Depth Of Cut Max 0.3150
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.6300 41.40MM
Flutes/Inserts 4
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 16 "6"
Tool Material Steel
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Style RC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
