  • WIDIA/KENNAMETAL M100D125Z02W125RD12L615 Button Cutter Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

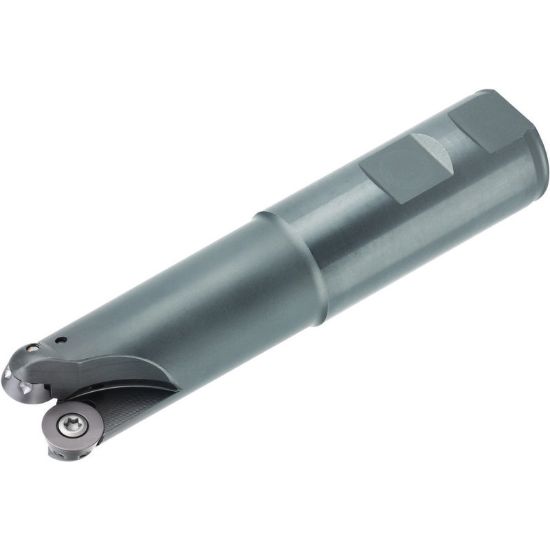

Picture of WIDIA/KENNAMETAL M100D125Z02W125RD12L615 Button Cutter Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL M100D125Z02W125RD12L615 Button Cutter Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

ANSI: M100D125Z02W125RD12L615

ISO: M100D125Z02W125RD12L615

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2646617
Delivery date: 3-5 days
$342.57

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Round Milling, Face Milling, Ramp Milling
Shipping State Pennsylvania
Package Size 1
Insert Type Positive
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Cut Dia Min 0.7780 19.76MM
Tool Material Steel
Insert Size Ic 12
Flutes/Inserts 2
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.2362
Overall Len 6.1500 156.21MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
