  • WIDIA/KENNAMETAL M100D100Z02W100RD12L553 Button Cutter Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

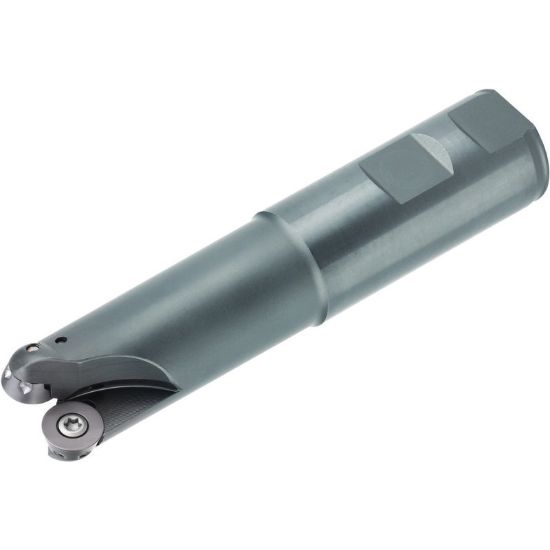

Picture of WIDIA/KENNAMETAL M100D100Z02W100RD12L553 Button Cutter Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL M100D100Z02W100RD12L553 Button Cutter Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: M100D100Z02W100RD12L553

ISO: M100D100Z02W100RD12L553

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2646611
Delivery date: 3-5 days
$335.15

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ramp Milling, Pocket Milling, Face Milling, Round Milling
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Dimensional Specifications
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 0.5280 13.41MM
Tool Material Steel
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Depth Of Cut Max 0.2362
Overall Len 5.5300 140.46MM
Insert Size Ic 12
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
