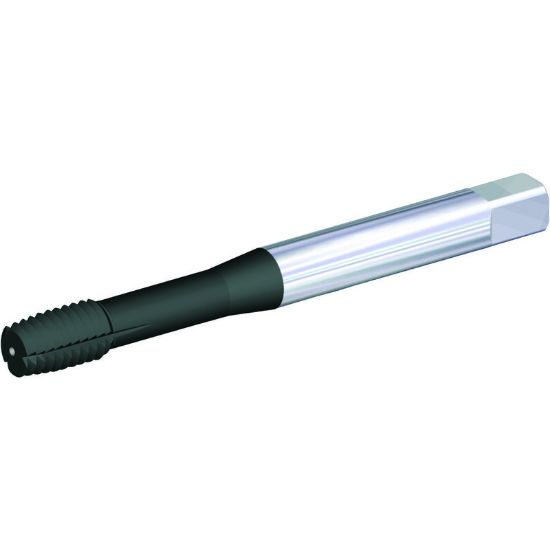

WIDIA/KENNAMETAL GX495010 M10-1.50MM Roll Form Bottoming 1.0P-2.0P Carbide TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGX495010
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN + CrC
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Shipping State Ohio
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Limit 6H
Shank/Pilot Dia 0.3940 10.01MM
Tap Chamfer 1.0P-2.0P
Thread Pitch 1.50MM
Tool Material Steel
Dimension Standard DIN/DIN
Thread Type Metric
Overall Len 3.9450 100.20MM
Cut Rating <40HRC Steel, Aluminum, Brass, Copper
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Thread Size M10
Flute Direction R - Right
Tap Square 0.3120
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
