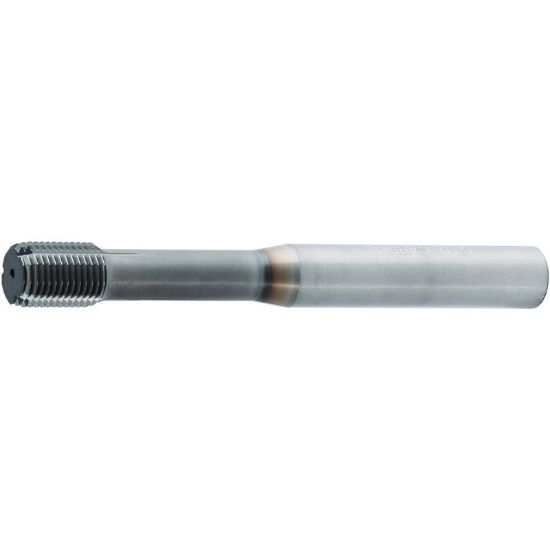

WIDIA/KENNAMETAL GX492914 M12-1.75MM Roll Form Bottoming 1.0P-2.0P Carbide TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGX492914
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN + CrC
Made In USA No
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Tap Style Roll Form
Tap Chamfer 1.0P-2.0P
Thread Type Metric
Shank/Pilot Dia 0.3670 9.32MM
Thread Limit 6H
Cut Rating <40HRC Steel, Aluminum, Brass, Copper
Length Type Standard
Tap Type Bottoming
Thread Size M12
Dimension Standard DIN/DIN
Tool Material Steel
Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Overall Len 3.9450 100.20MM
Tap Square 0.2730
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
