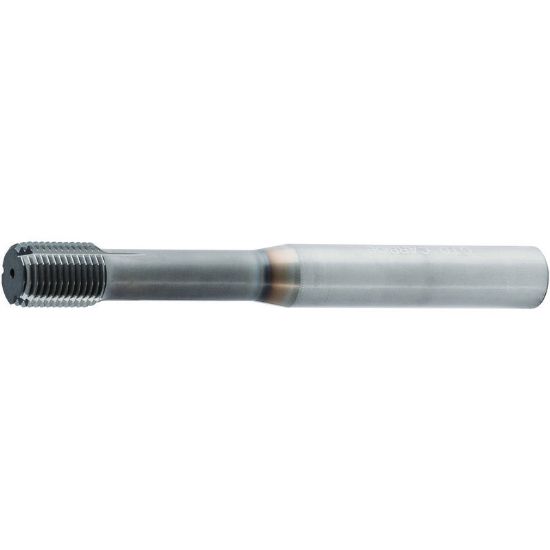

WIDIA/KENNAMETAL GX492911 M10-1.50MM Roll Form Bottoming 1.0P-2.0P Carbide TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGX492911
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Coating TiN + CrC
Dimensional Specifications
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Tap Style Roll Form
Cut Rating <40HRC Steel, Aluminum, Brass, Copper
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Thread Size M10
Dimension Standard DIN/DIN
Thread Limit 6H
Tap Chamfer 1.0P-2.0P
Thread Type Metric
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.5430 89.99MM
Tap Square 0.2840
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
