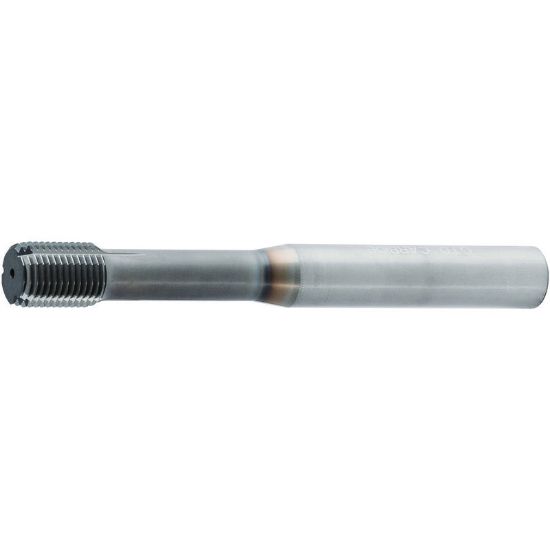

WIDIA/KENNAMETAL GX492909 M8-1.25MM Roll Form Bottoming 1.0P-2.0P Carbide TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGX492909
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Coating TiN + CrC
Made In USA No
Package Size 1
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Dimension Standard DIN/DIN
Flute Direction R - Right
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Length Type Standard
Tap Type Bottoming
Thread Size M8
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 3.1560 80.16MM
Thread Limit 6H
Tap Style Roll Form
Tap Chamfer 1.0P-2.0P
Cut Rating <40HRC Steel, Aluminum, Brass, Copper
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Thread Pitch 1.25MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
