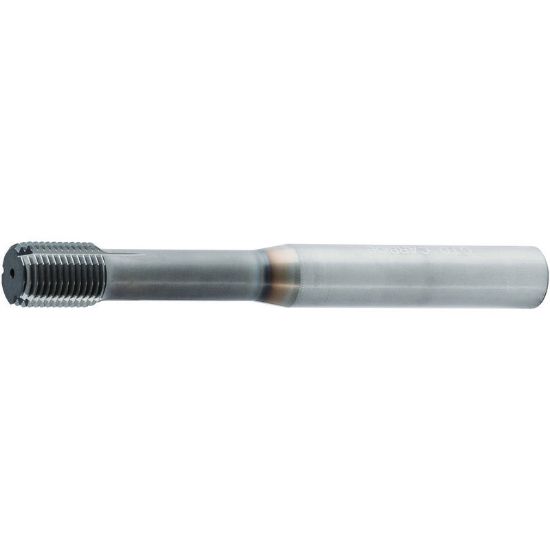

WIDIA/KENNAMETAL GX492908 M6-1.00MM Roll Form Bottoming 1.0P-2.0P Carbide TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGX492908
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Package Size 1
Coating TiN + CrC
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Type Metric
Thread Size M6
Dimension Standard DIN/DIN
Overall Len 2.7600 70.10MM
Thread Pitch 1.00MM
Cut Rating <40HRC Steel, Aluminum, Brass, Copper
Tap Square 0.1910
Shank/Pilot Dia 0.2362 6.00MM
Tool Material Steel
Thread Limit 6H
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Style Roll Form
Tap Chamfer 1.0P-2.0P
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
