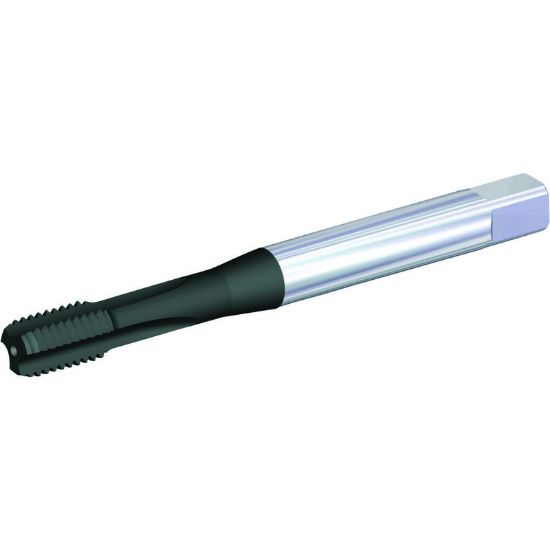

WIDIA/KENNAMETAL GX475010 M10-1.50MM Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGX475010
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN + CrC
Made In USA No
Shipping State Ohio
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tap Style Cut Spiral Flute
Thread Pitch 1.50MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 3.9450 100.20MM
Tap Square 0.3120
Tap Chamfer 1.0P-2.0P
Tool Material Steel
Thread Size M10
Thread Type Metric
Dimension Standard DIN/DIN
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
