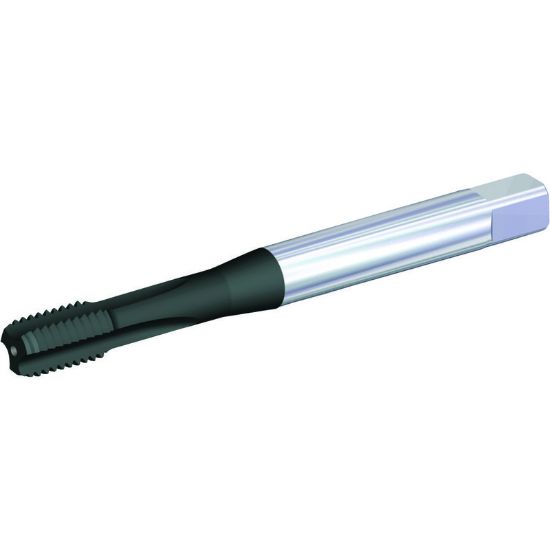

WIDIA/KENNAMETAL GX475008 M8-1.25MM Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGX475008
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN + CrC
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Ohio
Dimensional Specifications
Tool Material Steel
Overall Len 3.5430 89.99MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2410
Tap Type Bottoming
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Limit 6H
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.3149 8.00MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.0P-2.0P
Thread Size M8
Thread Type Metric
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Length Type Standard
Thread Pitch 1.25MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
