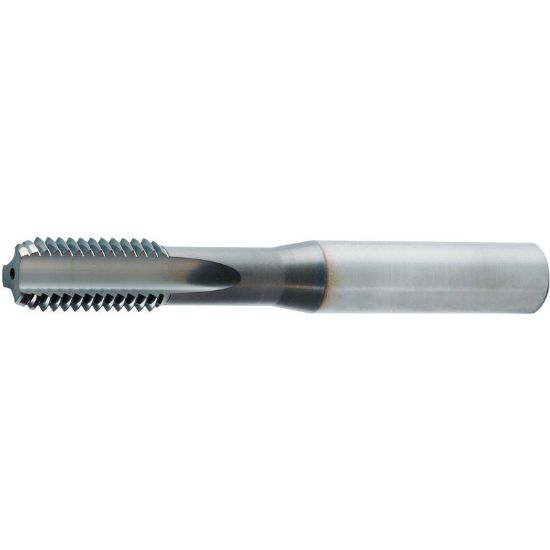

WIDIA/KENNAMETAL GX472867 M8-1.25MM Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGX472867
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Ohio
Package Size 1
Coating TiN + CrC
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 1.25MM
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Flute Direction R - Right
Length Type Standard
Tap Chamfer 1.0P-2.0P
Thread Size M8
Overall Len 3.1560 80.16MM
Thread Limit 6H
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tap Style Cut Spiral Flute
Tool Material Steel
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
