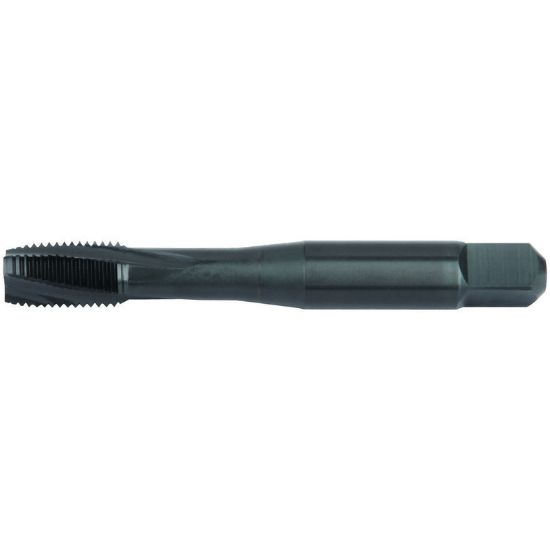

WIDIA/KENNAMETAL GT945035 5/8-11.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT945035
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Coating Nitride + Steam Oxide
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Size 5/8"
Overall Len 3.8110 96.80MM
Thread Type NC/UNC
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.4800 12.19MM
Tap Chamfer 1.0P-2.0P
Tool Material Steel
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Tap Square 0.3570
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
