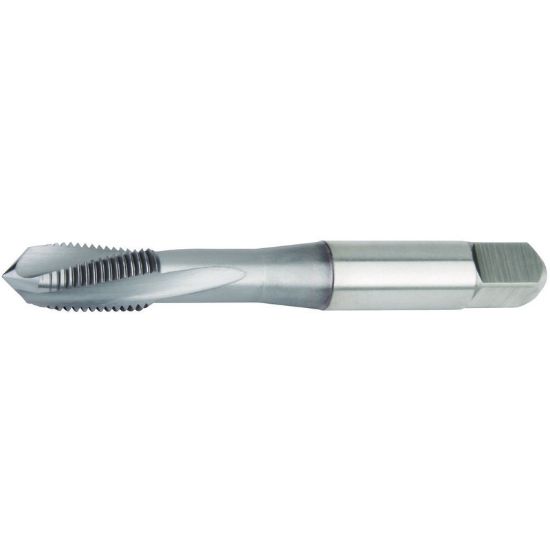

WIDIA/KENNAMETAL GT905140 M8-1.00MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT905140
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride + Steam Oxide
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 3
Thread Size M8
Thread Type Metric
Tap Type Plug
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 2.7200 69.09MM
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Length Type Standard
Tap Chamfer 3.5P-5.0P
Tap Style Cut Spiral Flute
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
