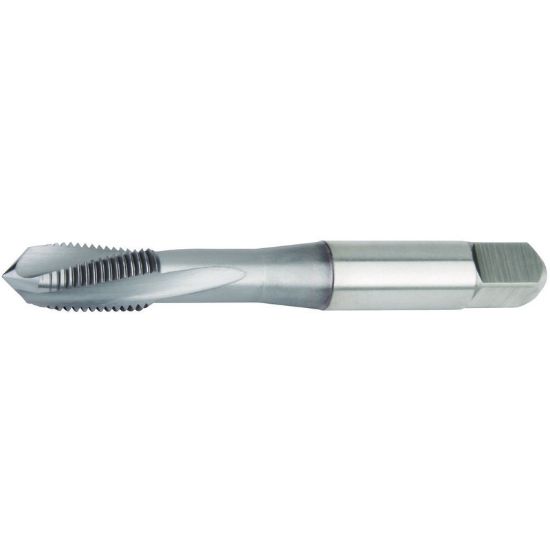

WIDIA/KENNAMETAL GT905138 M6-1.00MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT905138
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Ohio
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Coating Nitride + Steam Oxide
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Style Cut Spiral Flute
Thread Type Metric
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Flute Direction R - Right
Length Type Standard
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Dimension Standard ANSI/ANSI
Overall Len 2.5100 63.75MM
Tool Material Steel
Thread Size M6
Flutes/Inserts 3
Tap Square 0.1890
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
