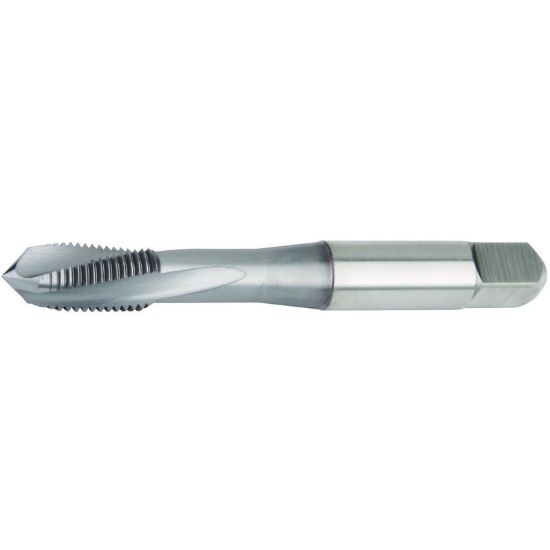

WIDIA/KENNAMETAL GT905062 5/8-11.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT905062
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Ohio
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Coating Nitride + Steam Oxide
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Thread Size 5/8"
Overall Len 3.8110 96.80MM
Tap Square 0.3570
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Tool Material Steel
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
