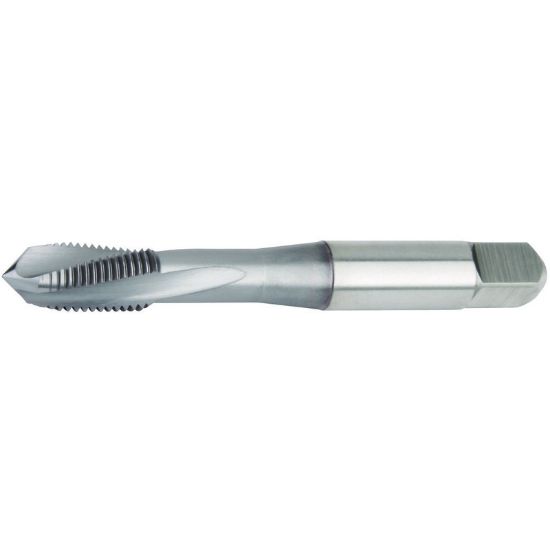

WIDIA/KENNAMETAL GT905061 1/2-20.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT905061
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Over Sized Tapping
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Coating Nitride + Steam Oxide
Dimensional Specifications
Thread Size 1/2"
Tool Material Steel
Tap Square 0.2720
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 3.3800 85.85MM
Thread Pitch 20.00TPI
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Style Over Sized Plug
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Thread Limit GH7 +0.0035
Tap Chamfer 3.5P-5.0P
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
