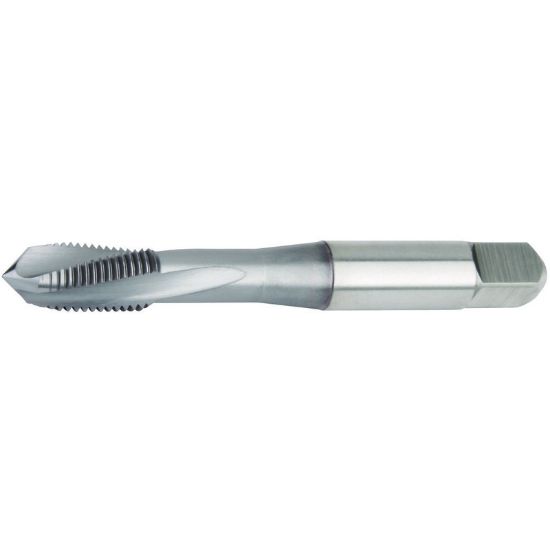

WIDIA/KENNAMETAL GT905058 1/2-13.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT905058
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating Nitride + Steam Oxide
Application Over Sized Tapping, Tapping, Through Hole Tapping, Plug Tapping
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Machine Side Connection Type Tap Collet
Thread Size 1/2"
Thread Limit GH7 +0.0035
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Tool Material Steel
Tap Square 0.2720
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Thread Pitch 13.00TPI
Tap Style Over Sized Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
