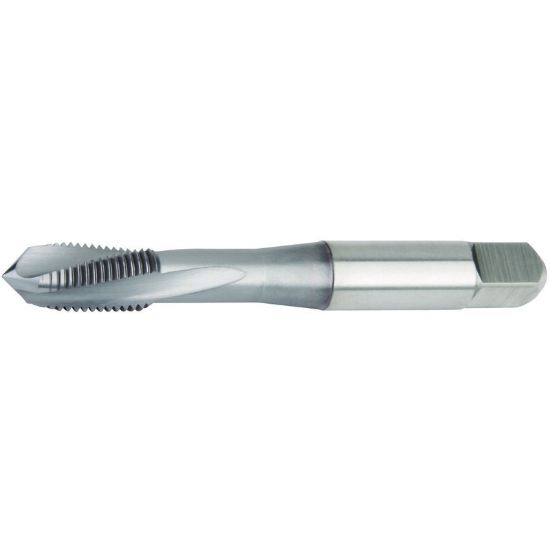

WIDIA/KENNAMETAL GT905017 No.8-32.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT905017
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating High Performance
Coating Nitride + Steam Oxide
Package Size 1
Shipping State Ohio
Dimensional Specifications
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Style Cut Spiral Flute
Overall Len 2.1300 54.10MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Length Type Standard
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Thread Limit H6/GH6
Tool Material Steel
Thread Type NC/UNC
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Size No.8
Machine Side Connection Type Tap Collet
Tap Square 0.1290
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
