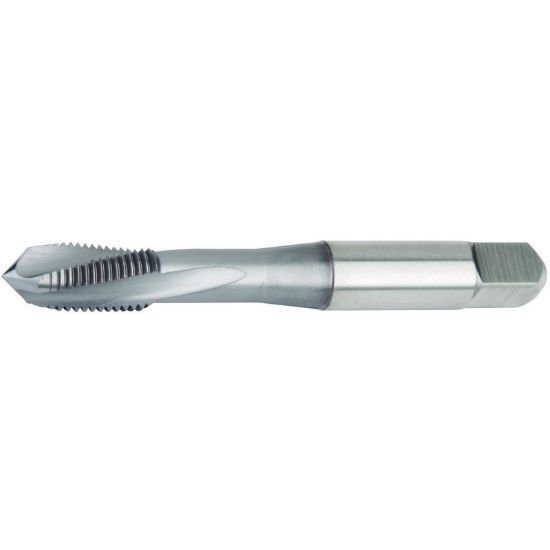

WIDIA/KENNAMETAL GT905012 No.6-40.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT905012
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Coating Nitride + Steam Oxide
Dimensional Specifications
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1118 2.84MM - 0.1181 3.00MM
Tap Square 0.1080
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 2.0000 50.80MM
Length Type Standard
Thread Size No.6
Flutes/Inserts 3
Thread Pitch 40.00TPI
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
