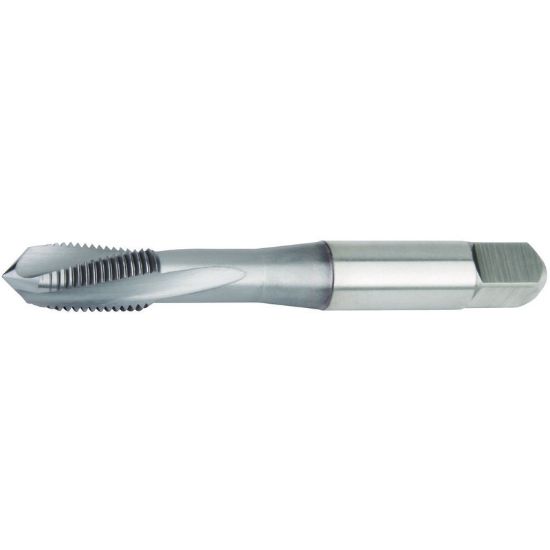

WIDIA/KENNAMETAL GT905007 No.6-32.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT905007
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Shipping State Ohio
Performance Rating High Performance
Coating Nitride + Steam Oxide
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Overall Len 2.0000 50.80MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Flutes/Inserts 3
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Thread Size No.6
Tool Material Steel
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 0.1080
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
