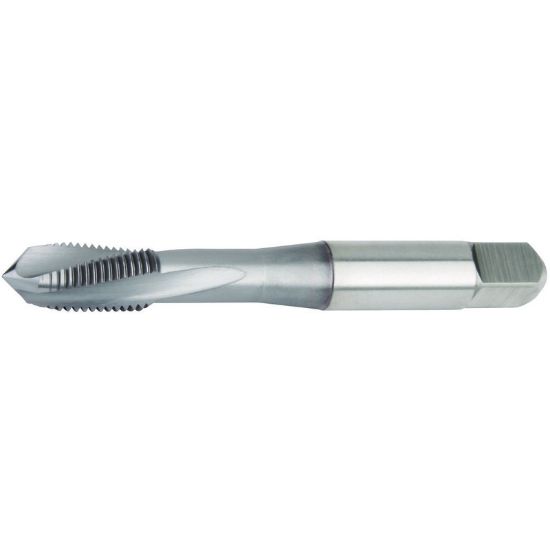

WIDIA/KENNAMETAL GT905001 No.2-56.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT905001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Coating Nitride + Steam Oxide
Performance Rating High Performance
Made In USA No
Package Size 1
Shipping State Ohio
Dimensional Specifications
Dimension Standard ANSI/ANSI
Tool Material Steel
Machine Side Connection Type Tap Collet
Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Flute Direction R - Right
Length Type Standard
Thread Pitch 56.00TPI
Tap Style Cut Spiral Flute
Thread Size No.2
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Tap Square 0.1080
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
