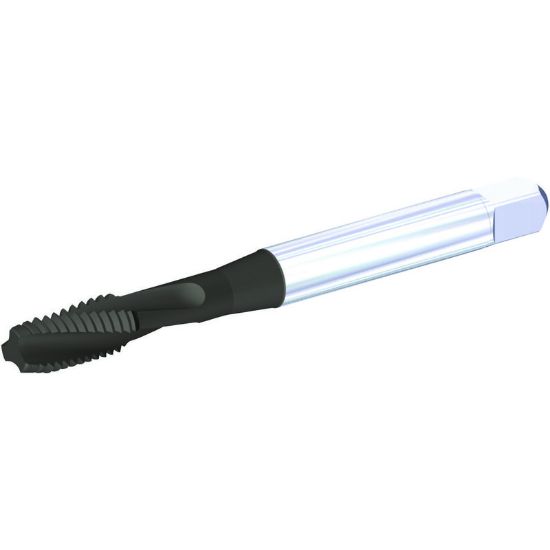

WIDIA/KENNAMETAL GT865048 M12-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT865048
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Coating TiN + CrC
Dimensional Specifications
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size M12
Overall Len 4.3300 109.98MM
Tap Square 0.2730
Cut Rating Aluminum, Brass, Graphite, Plastic
Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Tap Style Cut Spiral Flute
Thread Type Metric
Thread Limit D6
Shank/Pilot Dia 0.3670 9.32MM
Tap Chamfer 2.5P-3.0P
Thread Pitch 1.50MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
