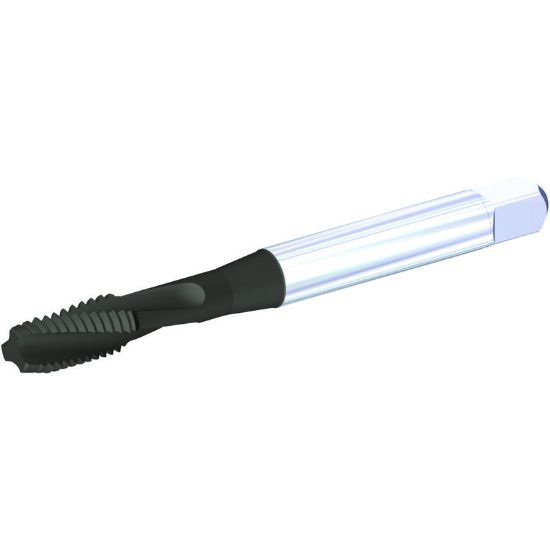

WIDIA/KENNAMETAL GT865041 M6-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT865041
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Package Size 1
Coating TiN + CrC
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Type Metric
Overall Len 3.1560 80.16MM
Thread Size M6
Flutes/Inserts 3
Tap Square 0.1890
Cut Rating Aluminum, Brass, Graphite, Plastic
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Tool Material Steel
Dimension Standard DINSI
Flute Direction R - Right
Length Type Standard
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
