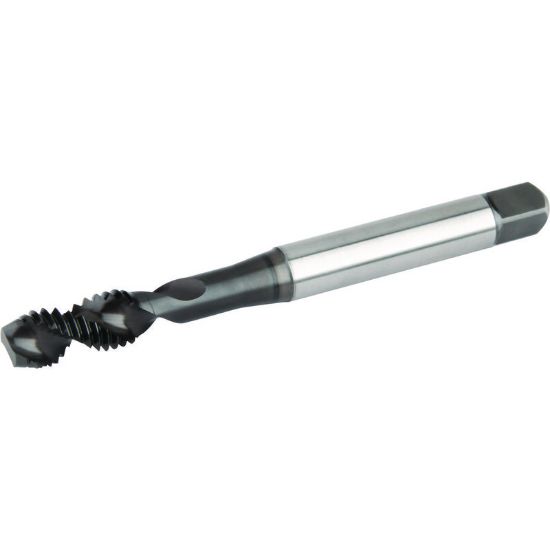

WIDIA/KENNAMETAL GT825044 M8-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT825044
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Shipping State Ohio
Coating TiN + CrC
Made In USA No
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Tap Chamfer 2.5P-3.0P
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Thread Pitch 1.25MM
Tool Material Steel
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Thread Size M8
Cut Rating Aluminum, Brass, Graphite, Plastic
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Length Type Standard
Dimension Standard DINSI
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
