  • WIDIA/KENNAMETAL GT805003 M5-0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

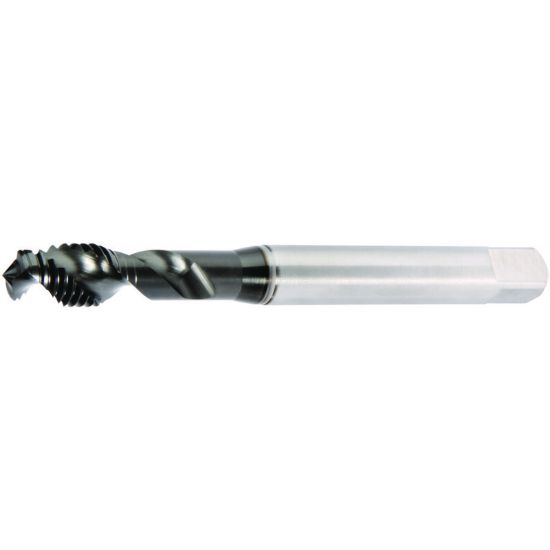

Picture of WIDIA/KENNAMETAL GT805003 M5-0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL GT805003 M5-0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT805003
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating DLC
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Pitch 0.80MM
Thread Type Metric
Overall Len 2.7560 70.00MM
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size M5
Dimension Standard DIN/DIN
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Shank/Pilot Dia 0.2362 6.00MM
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
