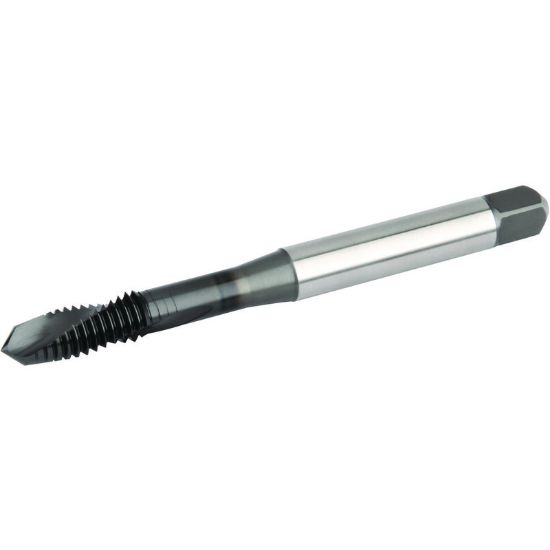

WIDIA/KENNAMETAL GT725049 M12-1.75MM Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725049
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Ohio
Coating TiN + CrC
Made In USA No
Package Size 1
Dimensional Specifications
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Thread Pitch 1.75MM
Overall Len 4.3300 109.98MM
Tap Square 0.2730
Tool Material Steel
Thread Type Metric
Thread Limit D6
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Dimension Standard DINSI
Thread Size M12
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
