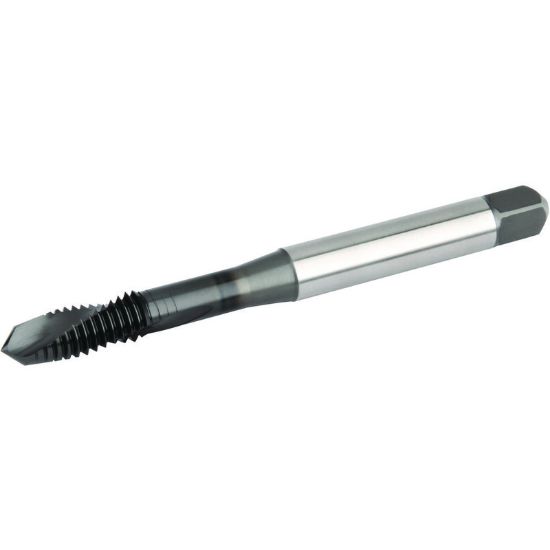

WIDIA/KENNAMETAL GT725048 M12-1.50MM Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725048
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Performance Rating High Performance
Coating TiN + CrC
Made In USA No
Dimensional Specifications
Machine Side Connection Type Tap Collet
Overall Len 4.3300 109.98MM
Tap Square 0.2730
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Thread Pitch 1.50MM
Flute Direction R - Right
Length Type Standard
Thread Size M12
Flutes/Inserts 3
Thread Type Metric
Thread Limit D6
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Tool Material Steel
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
