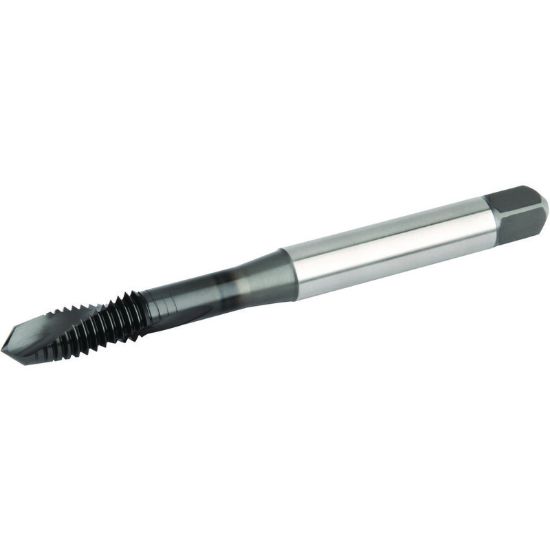

WIDIA/KENNAMETAL GT725046 M10-1.50MM Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725046
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Coating TiN + CrC
Package Size 1
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 2
Length Type Standard
Thread Type Metric
Thread Limit D6
Overall Len 3.9450 100.20MM
Tap Type Plug
Thread Pitch 1.50MM
Tool Material Steel
Tap Square 0.2840
Tap Style Cut Spiral Flute
Tap Chamfer 3.5P-5.0P
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Thread Size M10
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
