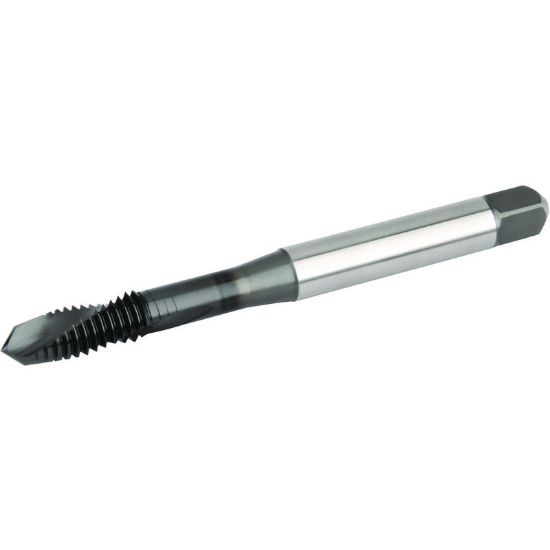

WIDIA/KENNAMETAL GT725045 M10-1.25MM Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725045
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating TiN + CrC
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Overall Len 3.9450 100.20MM
Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Thread Limit D5
Flutes/Inserts 2
Thread Pitch 1.25MM
Tool Material Steel
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Tap Square 0.2840
Length Type Standard
Thread Size M10
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
