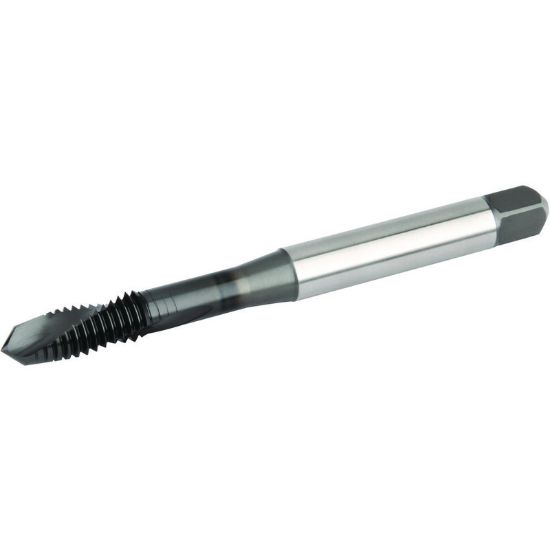

WIDIA/KENNAMETAL GT725042 M7-1.00MM Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725042
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Coating TiN + CrC
Made In USA No
Package Size 1
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Flute Direction R - Right
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Length Type Standard
Tap Style Cut Spiral Flute
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Thread Type Metric
Thread Size M7
Tool Material Steel
Drill Range 0.2346 5.96MM - 0.2449 6.22MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
