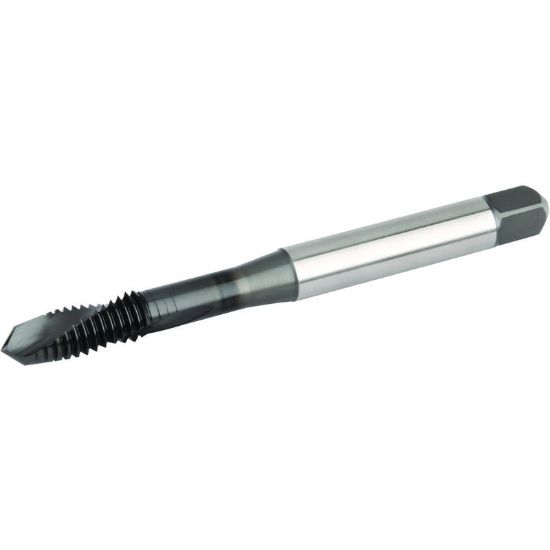

WIDIA/KENNAMETAL GT725038 M3.5-0.60MM Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725038
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Shipping State Ohio
Performance Rating High Performance
Coating TiN + CrC
Made In USA No
Dimensional Specifications
Tool Material Steel
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Tap Square 0.1080
Thread Pitch 0.60MM
Tap Style Cut Spiral Flute
Thread Size M3.5
Thread Type Metric
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 2.2050 56.01MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Machine Side Connection Type Tap Collet
Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Thread Limit D4
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
