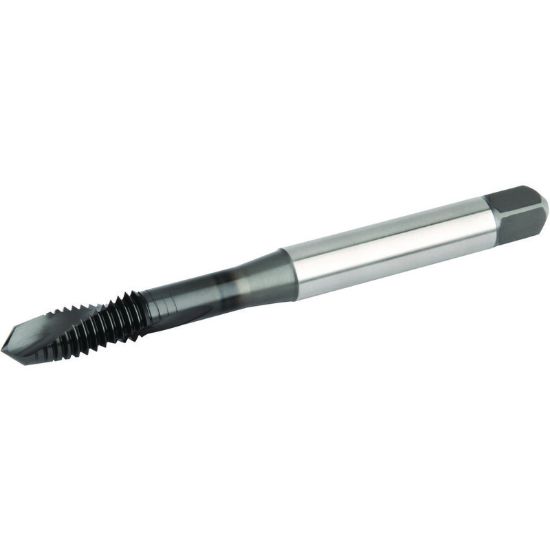

WIDIA/KENNAMETAL GT725035 1/2-20.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725035
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating TiN + CrC
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Thread Pitch 20.00TPI
Thread Limit H3/GH3
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Style Cut Spiral Flute
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Thread Size 1/2"
Tool Material Steel
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Overall Len 4.3300 109.98MM
Tap Square 0.2730
Tap Chamfer 3.5P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
