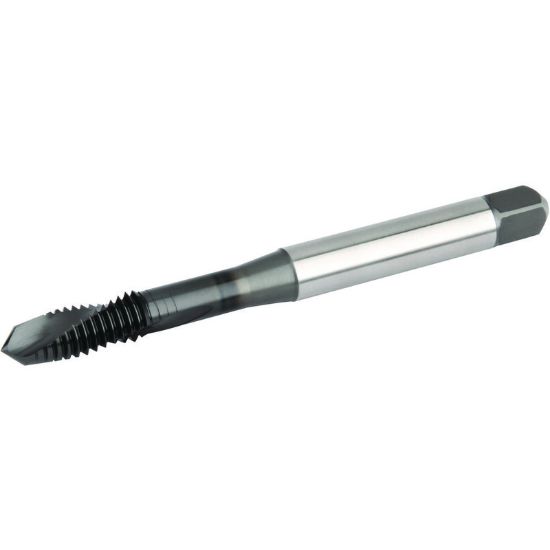

WIDIA/KENNAMETAL GT725031 7/16-20.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725031
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating TiN + CrC
Made In USA No
Package Size 1
Shipping State Ohio
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Flute Direction R - Right
Length Type Standard
Thread Pitch 20.00TPI
Thread Limit H3/GH3
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 3.9450 100.20MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Thread Type NF/UNF/UNEF
Tap Square 0.2400
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Flute
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
