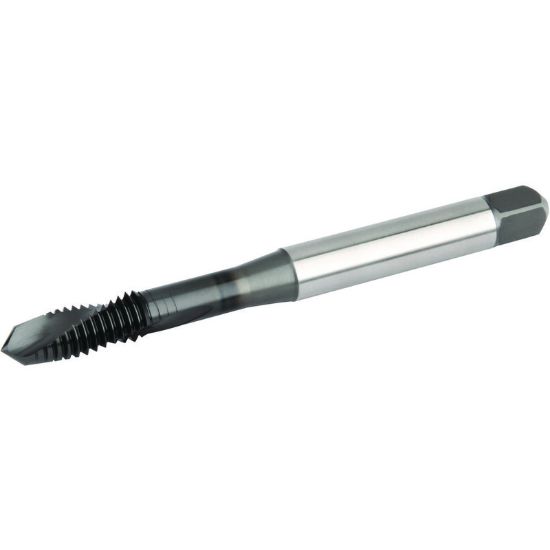

WIDIA/KENNAMETAL GT725026 3/8-16.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725026
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating TiN + CrC
Made In USA No
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Thread Size 3/8"
Tap Style Cut Spiral Flute
Tool Material Steel
Tap Square 0.2840
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 2
Length Type Standard
Tap Chamfer 3.5P-5.0P
Thread Pitch 16.00TPI
Thread Limit H5/GH5
Overall Len 3.9450 100.20MM
Tap Type Plug
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
