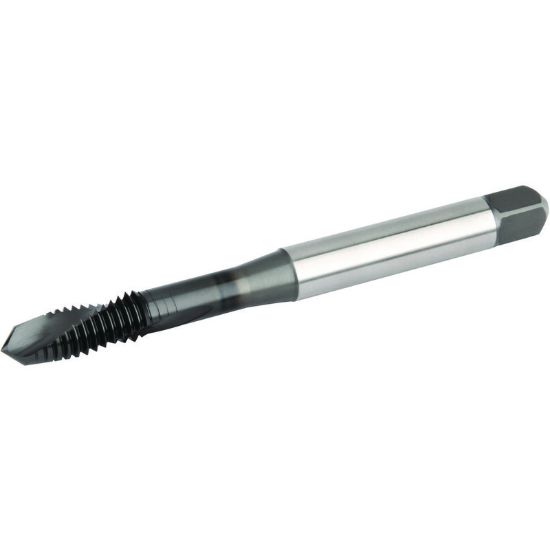

WIDIA/KENNAMETAL GT725023 5/16-24.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725023
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Coating TiN + CrC
Made In USA No
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Type NF/UNF/UNEF
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Size 5/16"
Flute Direction R - Right
Overall Len 3.5430 89.99MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Tap Style Cut Spiral Flute
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Limit H3/GH3
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Thread Pitch 24.00TPI
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
