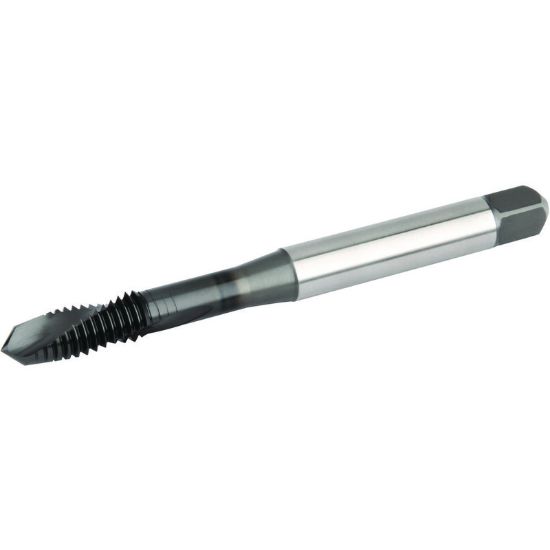

WIDIA/KENNAMETAL GT725021 5/16-18.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725021
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Shipping State Ohio
Made In USA No
Performance Rating High Performance
Coating TiN + CrC
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Length Type Standard
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Thread Pitch 18.00TPI
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
