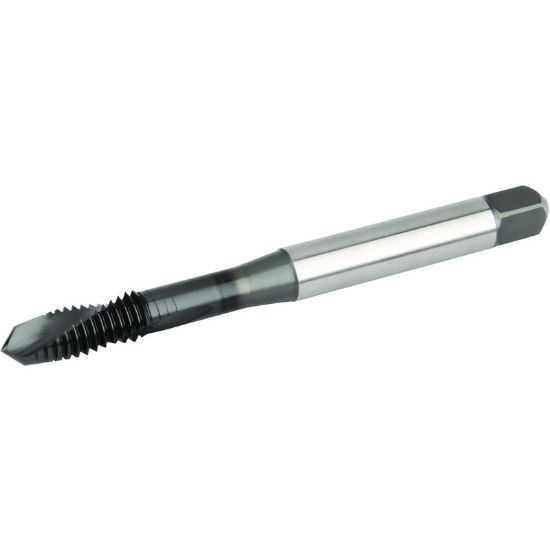

WIDIA/KENNAMETAL GT725015 No.10-24.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725015
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Coating TiN + CrC
Performance Rating High Performance
Package Size 1
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Thread Pitch 24.00TPI
Overall Len 2.7600 70.10MM
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Tap Style Cut Spiral Flute
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Chamfer 3.5P-5.0P
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
