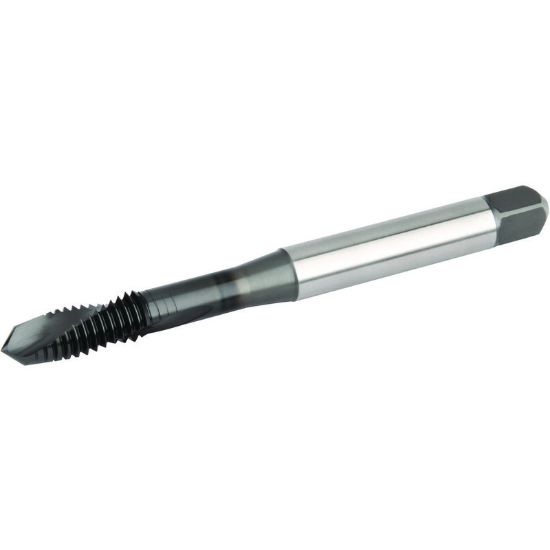

WIDIA/KENNAMETAL GT725011 No.4-40.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT725011
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Package Size 1
Coating TiN + CrC
Dimensional Specifications
Thread Pitch 40.00TPI
Overall Len 2.2050 56.01MM
Tap Type Plug
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Length Type Standard
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 3.5P-5.0P
Tap Square 0.1080
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
