  • WIDIA/KENNAMETAL GT705008 M16-2.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

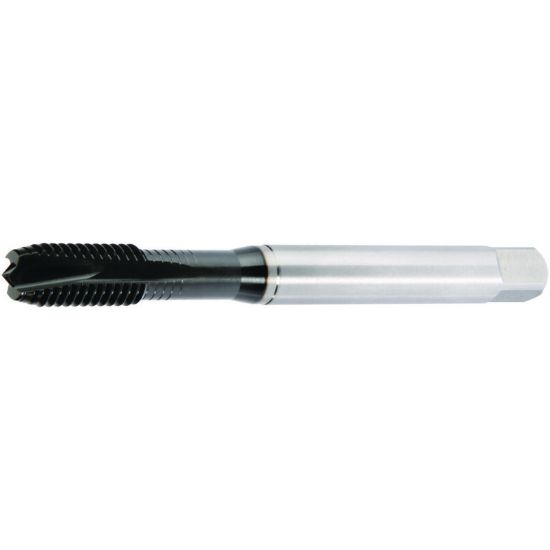

Picture of WIDIA/KENNAMETAL GT705008 M16-2.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL GT705008 M16-2.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT705008
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Coating DLC
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Package Size 1
Shipping State Ohio
Dimensional Specifications
Thread Pitch 2.00MM
Thread Type Metric
Shank/Pilot Dia 0.4724 12.00MM
Tap Type Plug
Thread Size M16
Flute Direction R - Right
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Length Type Standard
Tool Material Steel
Overall Len 4.3310 110.01MM
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Square 0.3540
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
