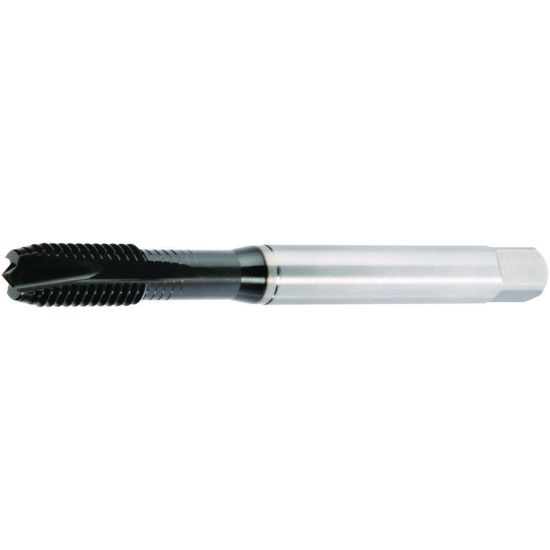

Picture of WIDIA/KENNAMETAL GT705007 M12-1.75MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL GT705007 M12-1.75MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT705007
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Made In USA No
Coating DLC
Package Size 1
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3543 9.00MM
Thread Size M12
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Square 0.2760
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Thread Type Metric
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Type Plug
Tool Material Steel
Overall Len 4.3310 110.01MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
