  • WIDIA/KENNAMETAL GT705006 M10-1.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

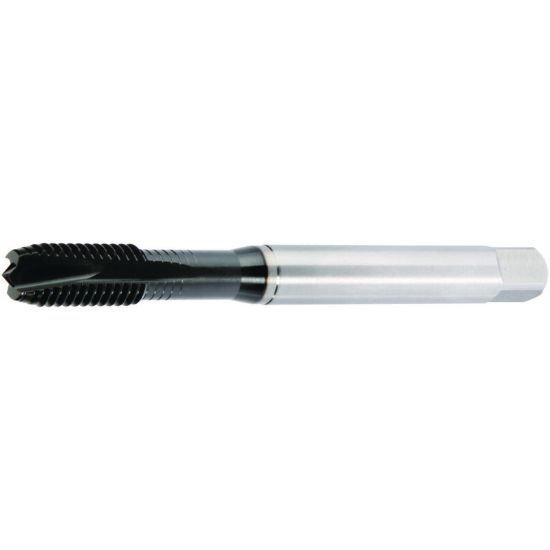

Picture of WIDIA/KENNAMETAL GT705006 M10-1.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL GT705006 M10-1.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT705006
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Ohio
Made In USA No
Coating DLC
Package Size 1
Dimensional Specifications
Thread Size M10
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3937 10.00MM
Tap Type Plug
Thread Type Metric
Tap Square 0.3150
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Length Type Standard
Thread Limit 6H
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
